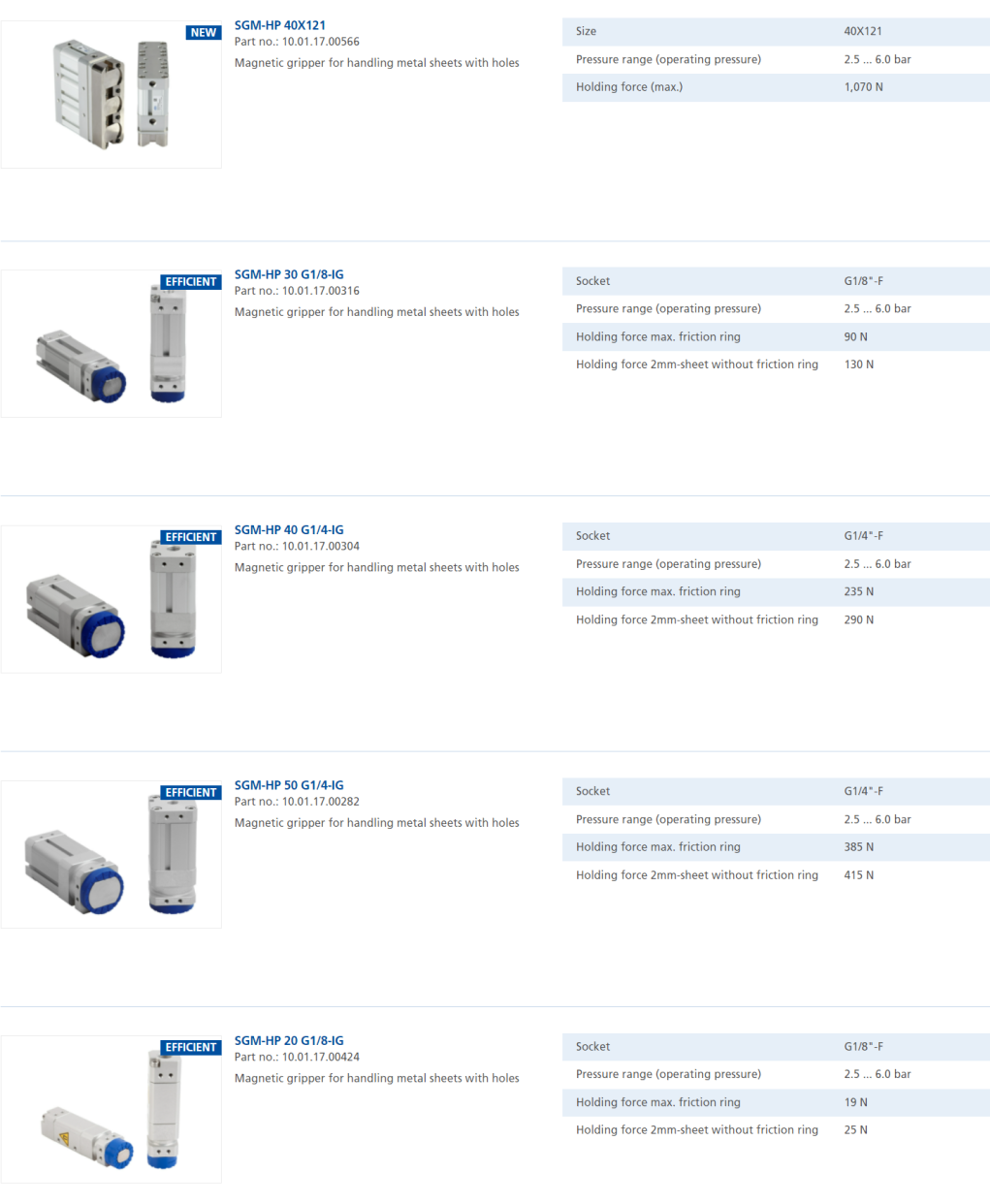

Schmalz Magnetic Grippers SGM-HP
23 Aug 2021
In this video, we present our magnetic grippers SGM-HP: the ideal gripping solution for complexly shaped workpieces where suction cups reach their limits. The switchable permanent magnet generates very high holding forces. An optional friction ring absorbs high lateral forces, which enables very high process accelerations. Workpiece temperatures of up to 350° Celsius are no challenge for the magnetic grippers SGM-HP. In addition, they can be easily connected to common toolings in the press shop and body shop.
Advantages of magnetic grippers:
- Safe gripping with a permanent magnet is possible without voltage source
- Control of permanent magnet with compressed air and vacuum
Typical areas of application:
- Handling of ferromagnetic workpieces
- Handling of blanks and perforated plates as well as sheet metal parts with drilled holes/breakouts or complex shapes
- Support of vacuum gripping system in highly dynamic handling of sheet metal parts
